Red Roo 1712 305mm (12")

Enquire for Price
Available

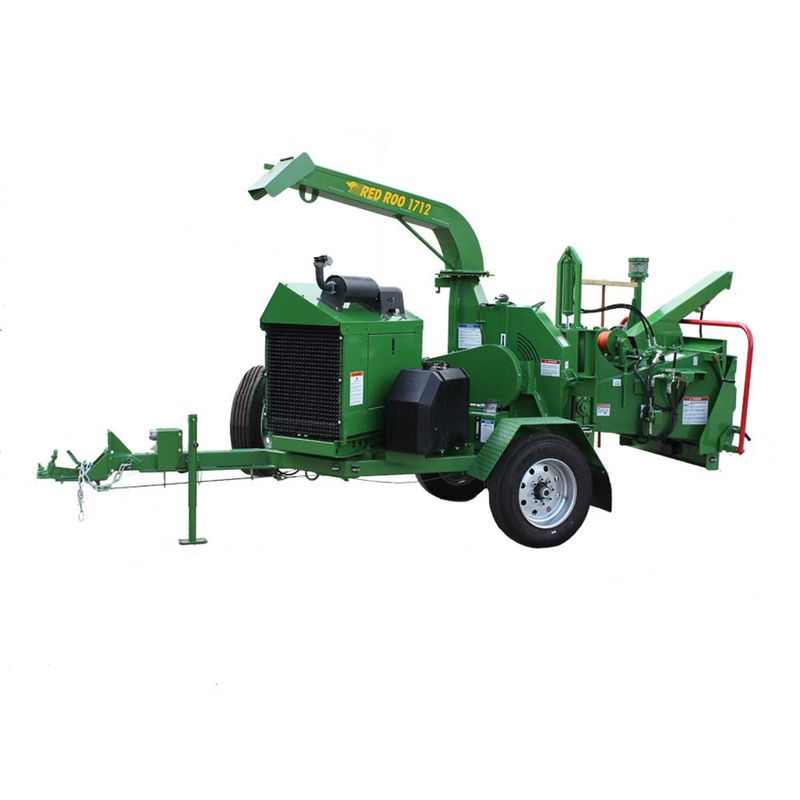

The Red Roo 1712 Disc Woodchipper is powered by a 99hp(74kw) Kubota turbo diesel engine. The Red Roo 1712 wood chipper provides an ideal balance of capacity, economy, and portability. At just 2341 kgs(5400 pounds) the 1712 is easily towable by smaller chip trucks. The lightweight and compact size of the 1712 makes it highly maneuverable in tight places. The Red Roo Model 1712 incorporates many design features to make it a highly productive (305mm)12inch capacity chipper. The 1219mm (48inch) by 711mm (28inch) infeed opening allows the 1712 to swallow tops with little or no trimming. The 268mm (10.5inch) diameter feed rollers accept the wood with minimal fuss or wrapping. The large 32-cubic-inch displacement hydraulic feed motors provide the power to pull and collapse limbs and tops.

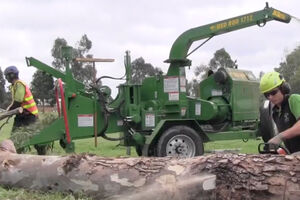

1712 BRUSH CHIPPER DEMONSTRATION..

This video provides a demonstration of the capabilities of The Red Roo 1712 Disc Woodchipper and illustrates the high regard held by the industry for the performance of the machine.





1712 Commercial Wood Chipper
Spread the word
  • Specifications
  • Features
  • Photos
  • Manuals
  • Videos
  • Reviews
Engine
74kw (99hp) Kubota Turbo Diesel Engine
4
98mm (3.86 inches)
110mm (4.33 inches)
2800 RPM
205 Ft Lbs
Liquid Water/Antifreeze Mixture
Two Stage Dry Type
Full flow Spin On
14 Quarts
12 Volt
Oil Pres, Water Temp, Amo, Digital Tach
Stein
General
2700kg (5950 lbs)
4724mm (186 inches)
2362mm (93 inches)
215/75R Ld H 4805 Pd @125 PSI
Dexter Torflex 7000 lbs Cap
Electric with Breakaway Switch
90 litres (24 Gallons)
29HVD 660 CCA
Hydraulics
.8 Cu in
Direct Drive off Engine Mount
8.8 GPM Total
2500 PSI
9 Gallons
Discharge
Adjustable Swivel
Chipper Disk
952mm (37.5 inches)
(38mm) 1.5 inches
1180 RPM
4
Feed System
Two 32 Cubic inch Displacement
4.4 GPM to each Motor
Live – Driven off engine
Digital, Fully Adjustable
30 metres (100) feet per minute
Cutting System
304mm (12inches) x 431mm (17 Inches)
736mm(29 Inches) x 1219mm(48 Inches)
Warranty
Machine Warranty: 12 months against defective materials, design, and workmanship
Engine Warranty: As per manufacturers specifications
Manuals: Operator instructions, hazard assessment, maintenance, & spare parts manuals supplied with each machine

No other images are available


No videos are currently available

No reviews are currently available.
If you would like to leave a review, please email info@redroo.com
