HT1624TK Hydraulic Track Trencher

Enquire for Price
The Red Roo HT1624TK trencher is powered by a 16hp (12kw) V Twin OHV Briggs and Stratton Vanguard. The HT1624TK has a forward ground speed of 55 metres per minute and a reverse ground speed of 27 metres per minute. The maximum trenching depth is 600mm with a width of 100mm This unit has a solid footprint allowing access to very difficult environmental conditions.

Heavy Duty Track Trencher

The Red Roo HT1624 Track Trencher is low maintenance and reliable in the most difficult conditions. The ergonomic steering, tracks, and size of this trencher make the operators job effective and efficient. Undercarriage track drive components are well protected yet easily accessed.


Ideal for irrigation

The Red Roo HT1624 Track Trencher is Ideal for irrigation contractors and electrical contractors. This unit has a proven track record in the demanding Hire and Rental Industry. The controls of the HT1624TK are easy to operate and as demonstrated in this video it is of great benefit on those long trenching jobs and you obtain precise cutting and depth control.



Spread the word

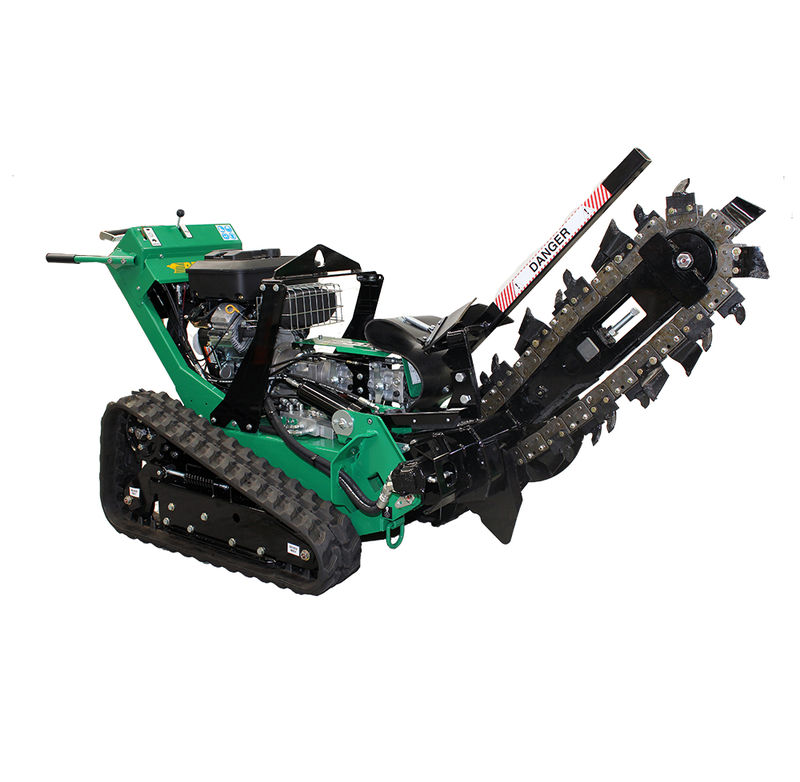

HT1624 Hydraulic trencher

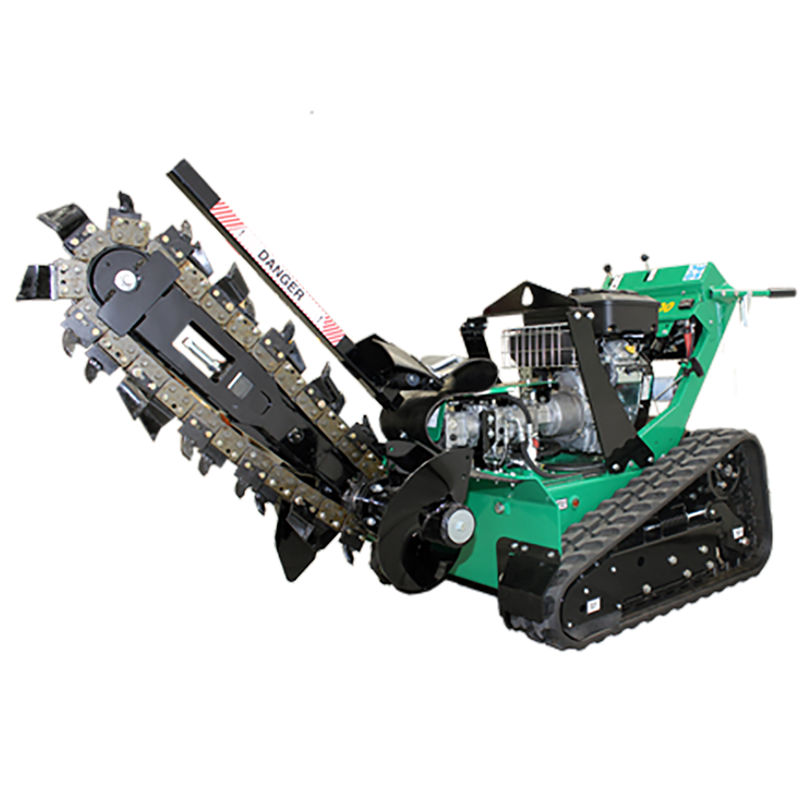

HT1624TK Hydraulic Trencher

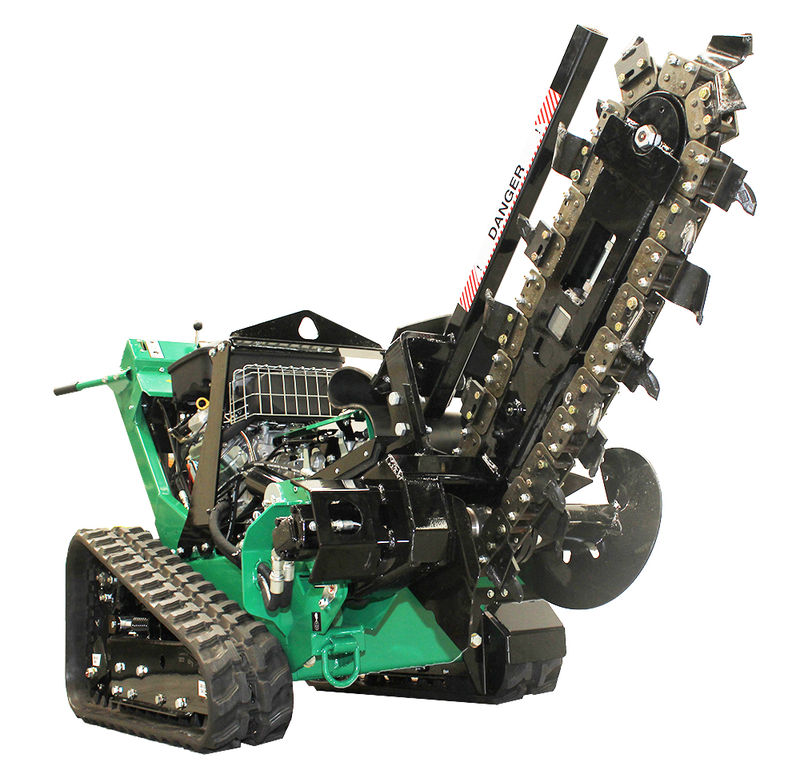

HT1624TK Hydraulic Trencher

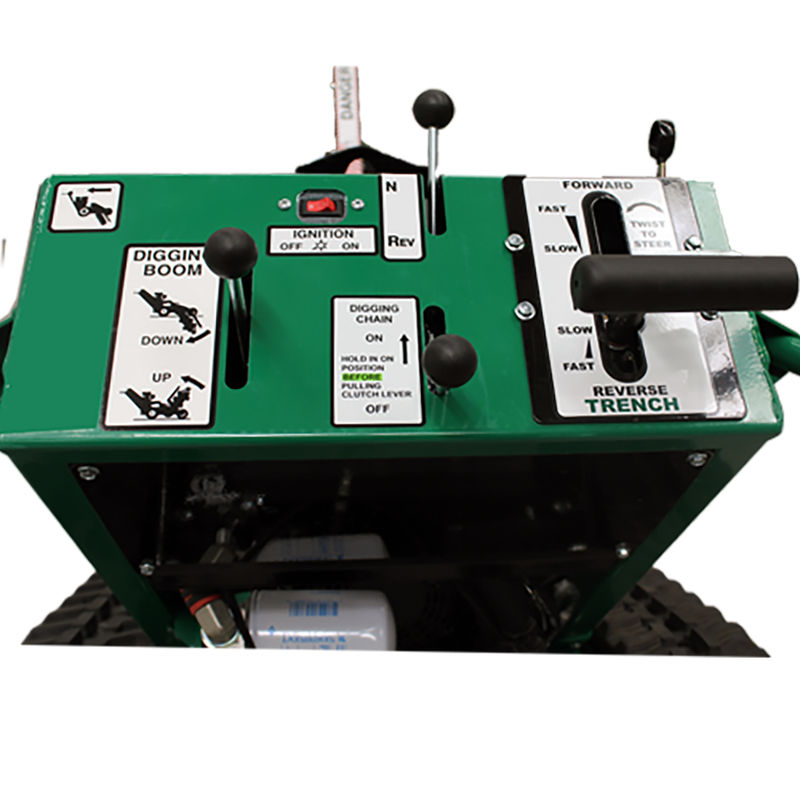

HT1624TK Hydraulic Trencher Control Panel

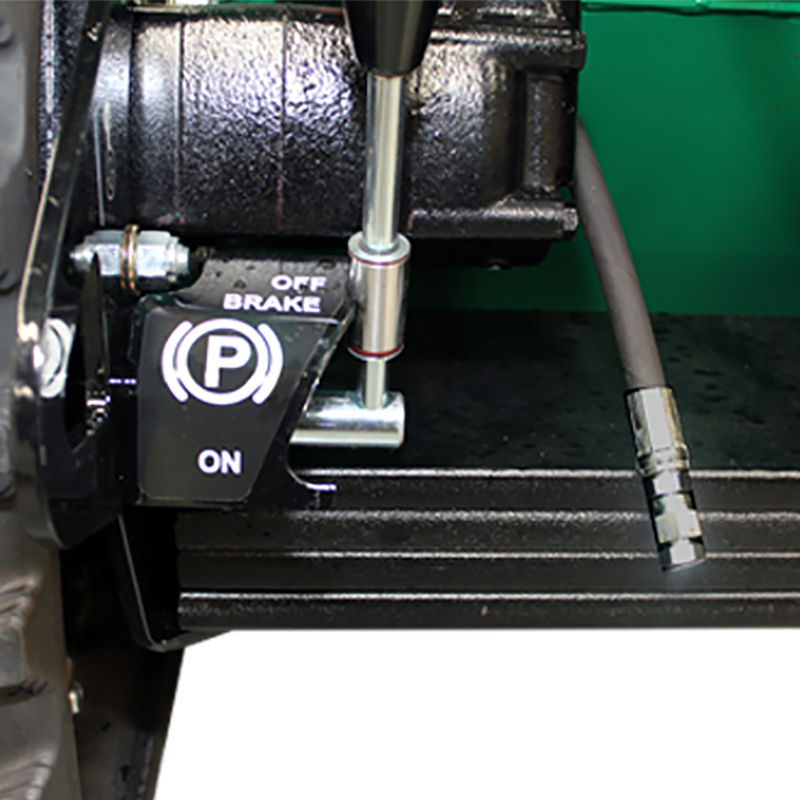

HT1624TK Hydraulic Trencher Brake
  • Specifications
  • Features
  • Photos
  • Manuals
  • Videos
  • Reviews
  • Shipping
16.0hp (12kw) V Twin OHV Briggs & Stratton Vanguard Manual Start
Direct Hydraulic Drive To Head Shaft
2108mm-Front Wheel to Handlebar
2235mm - Boom to Handlebar
450 kg
483mm Centre to Outside Left
381mm- Centre to Outside Right
203mm- Head Shaft Height Digging Chain
610mm Maximum
150mm Maximum
Donaldson Cyclopac™ Air Filtration System
Lifting Hook
610mm x 100mm 13 Station Cup Chain (Optional)
610mm x 100mm 26 Station Cup Chain (Standard)
610mm x 100mm 26 Station Frost Rock Bullet Chain (Optional)
55 metres per minute
No Belts - No Gears - No Chains (With The Exception Of The Trenching Chain
Lower Centre Of Gravity
Out board Support Bearing - Standard
Safety Clutch Stops Wheels & Chain Immediately
Hydraulic Chain Reverse To Dislodge Rocks Or Debris
Finer Degree Of Control For Trenching Ground-Speed
12 Months On Machine & 2 Years On Engine As Per Specification
90 Days In Commercial Applications / 90 Days In Hire & Rental
HT1624 Hydraulic trencher
HT1624TK Hydraulic Trencher
HT1624TK Hydraulic Trencher
HT1624TK Hydraulic Trencher Control Panel
HT1624TK Hydraulic Trencher Brake

No manuals are currently available

NBN Cable Installation with Track TrencherNBN Cable Installation with Track TrencherHire or Rent a Track TrencherHire or Rent a Track Trencher

No reviews are currently available.
If you would like to leave a review, please email info@redroo.com

HT 1624 Mini Track Trencher

Shipping deatils for the HT 1624 Mini Track Trencher are shown below:

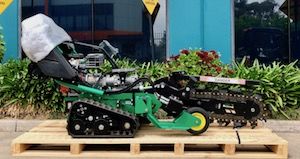

HT1624 Mini Track Trencher (Shipping Dimensions Assembled Banded To The Pallet)

Width     945mm

Length    2500mm

Height    1400mm

Weight   515kgs (Shipping Weight)
