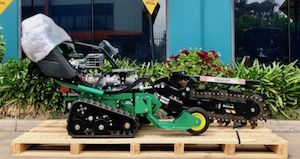

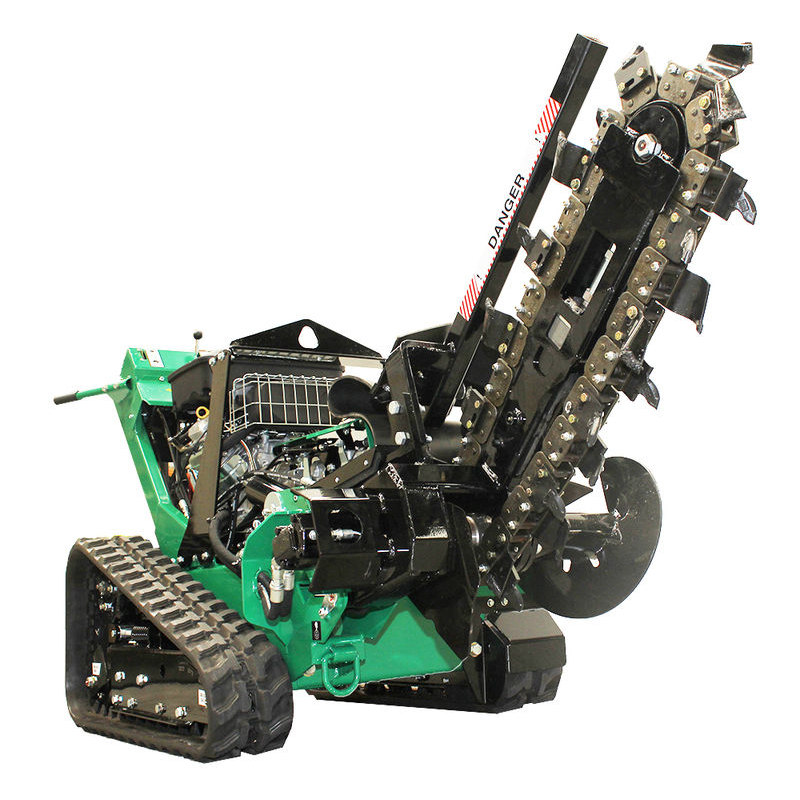

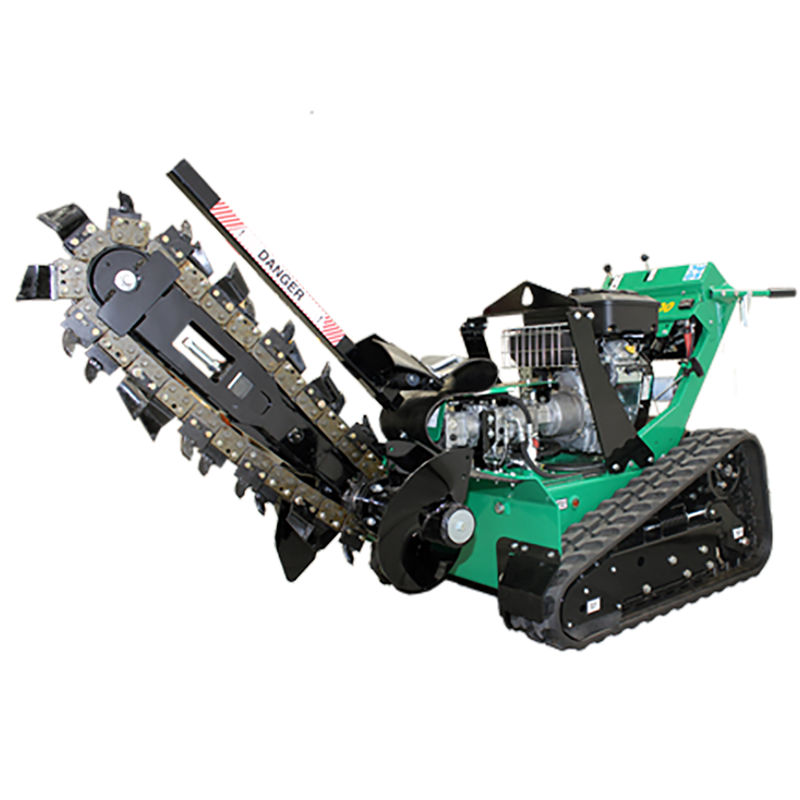

HT1624TK Hydraulic Track Trencher

The Red Roo HT1624TK trencher is powered by a 16hp (12kw) V Twin OHV Briggs and Stratton Vanguard

Key Features

No Belts - No Gears - No Chains (With The Exception Of The Trenching Chain)
Lower Centre Of Gravity
Out board Support Bearing - Standard

ENQUIRE Add to Wishlist

50+ Years of Innovation

Established in Toowoomba, Queensland in 1971. Machines are manufactured in Australia or United States.

Design & Manufacturing

Utilizing Laser Cutting, CNC Machining, and Powder Coating, we use the latest technology available to manufacture at the highest possible standard.

Service & Support

Next day parts service and expert online and phone support across Australia and New Zealand.

The Red Roo HT1624TK trencher is powered by a 16hp (12kw) V Twin OHV Briggs & Stratton Vanguard.

The HT1624TK has a forward ground speed of 55 metres per minute and a reverse ground speed of 27 metres per minute.

The maximum trenching depth is 600mm with a width of 100 mm.

This unit has a solid footprint, allowing access to very difficult environmental conditions.

DEMONSTRATION TRACK TRENCHER

The Red Roo HT1624 Track Trencher is low maintenance and reliable in the most difficult conditions. The ergonomic steering, tracks, and size of this trencher make the operators job effective and efficient. Undercarriage track drive components are well protected yet easily accessed.

IRRIGATION TRENCHING DEMONSTRATION

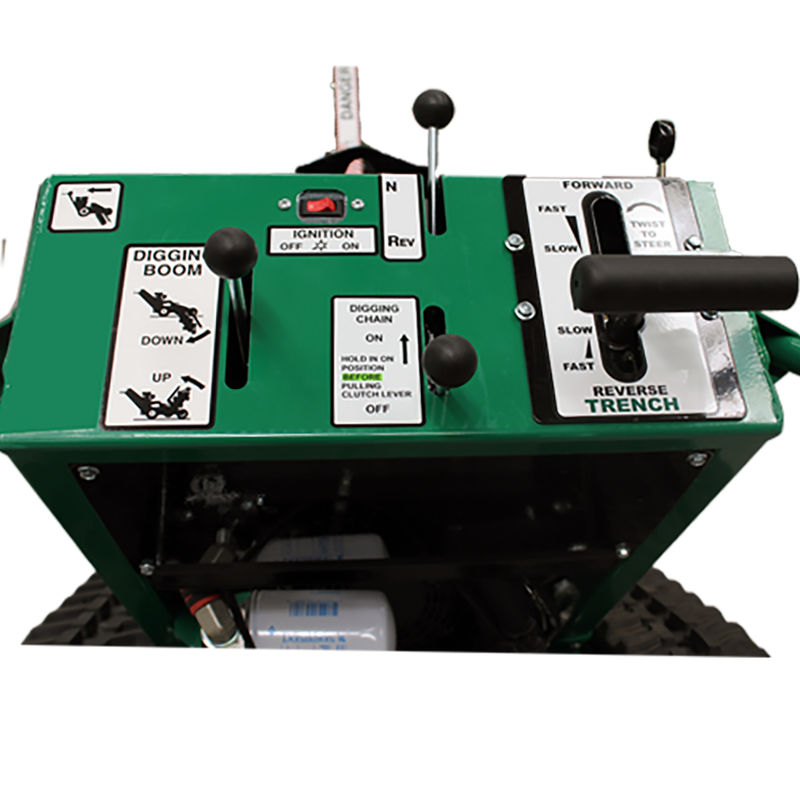

The Red Roo HT1624 Track Trencher is Ideal for irrigation contractors and electrical contractors. This unit has a proven track record in the demanding Hire and Rental Industry. The controls of the HT1624TK are easy to operate and as demonstrated in this video it is of great benefit on those long trenching jobs and you obtain precise cutting and depth control.

Engine
Engine Type	16.0hp (12kw) V Twin OHV Briggs & Stratton Vanguard Manual Start
Engine Drive	Direct Hydraulic Drive To Head Shaft
General
Transport Length	2108mm-Front Wheel to Handlebar
Transport Length	2235mm - Boom to Handlebar
Transport Width	889mm
Transport Height	1168mm
Weight	450 kg
Trencher Dimension	483mm Centre to Outside Left
Trencher Dimension	381mm- Centre to Outside Right
Wheel Base	889mm
Wheel Base: 889mm	203mm- Head Shaft Height Digging Chain
Trenching Depth	610mm Maximum
Trenching Width	150mm Maximum
Boom Travel - Up	60°
Boom Travel - Down	60°
Options
	Donaldson Cyclopac™ Air Filtration System
	Lifting Hook
Chain
	610mm x 100mm 13 Station Cup Chain (Optional)
	610mm x 100mm 26 Station Cup Chain (Standard)
	610mm x 100mm 26 Station Frost Rock Bullet Chain (Optional)
Operation
Ground Speed -Forward	55 metres per minute

Features
No Belts - No Gears - No Chains (With The Exception Of The Trenching Chain)
Lower Centre Of Gravity
Out board Support Bearing - Standard

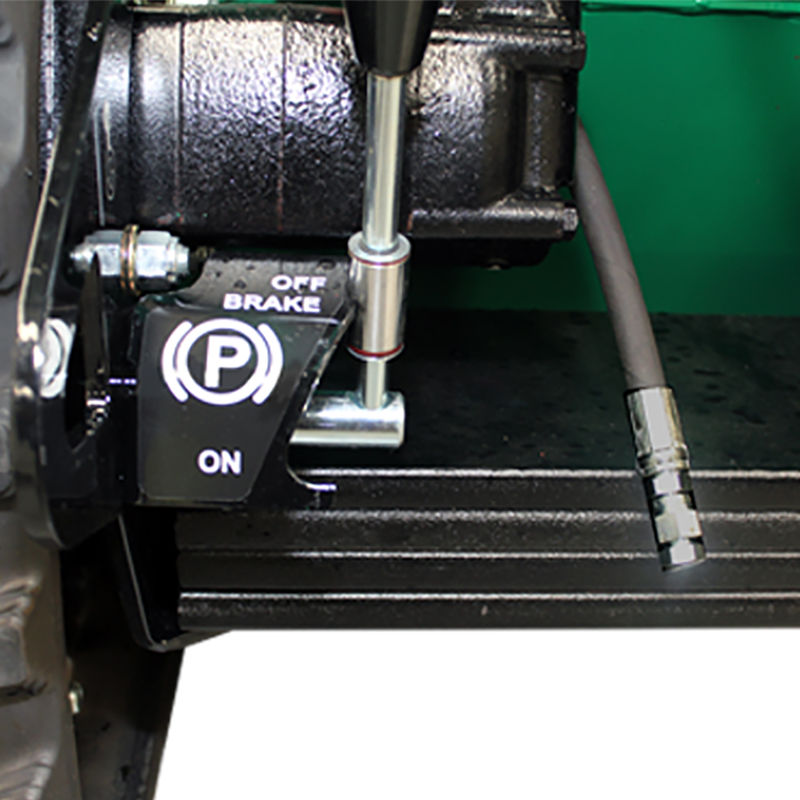

Safety Clutch Stops Wheels & Chain Immediately
Hydraulic Chain Reverse To Dislodge Rocks Or Debris
Finer Degree Of Control For Trenching Ground-Speed
