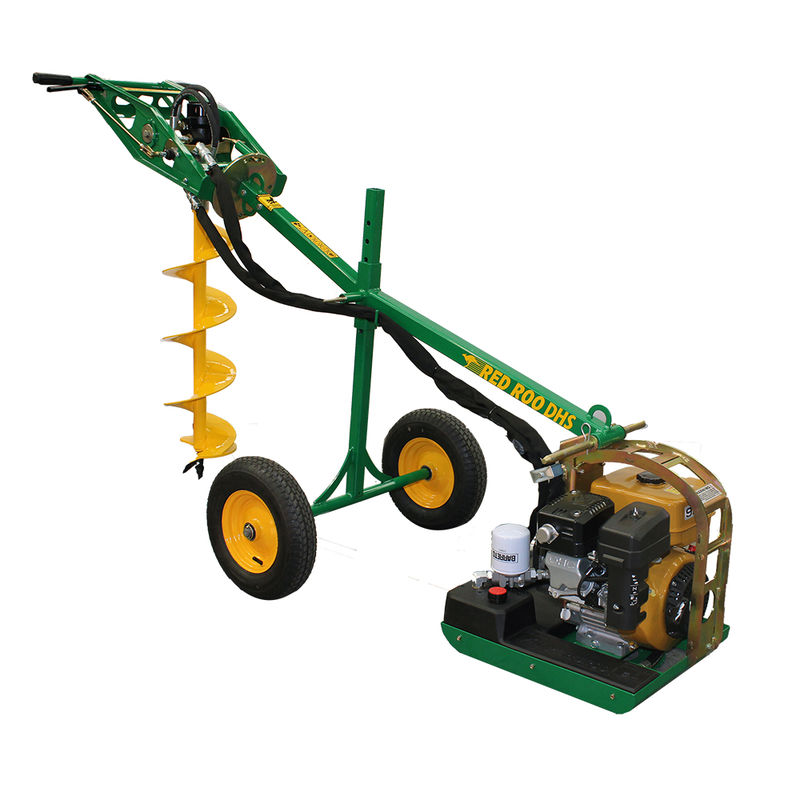

DHS Hydraulic Post Hole Digger
The DHS Hydraulic Post Hole Digger offers safe, simple, one-person operation.
Key Features
- Sandblasted & Powder Coated Finish
- Dual Rotation of Auger (Standard & Counter Rotating)
- Hydraulic Fluid Level Indicator In Tank
Red Roo DHS post hole digger is designed to provide a safe, simple, one-person operation for digging holes.
The DHS is powered by a genuine 9HP(6.75kw) Genuine Honda GX270 petrol engine and is all hydraulic for greater reliability and low maintenance.
It disassembles easily for transport. Ideal for fencing contractors and the demanding Hire and rental industry.
The DHS is available with a wide range of augers to dig from 100mm (4") to 350 mm (14") in diameter and 900mm (35") deep.
Depth may be increased with the use of one or more 500mm (20") extensions.
The Red Roo DHS hydraulic post hole digger is the best-selling hydraulic post digger in Australia and New Zealand.
DHS HYDRAULIC POST HOLE DIGGER
RECOMMENDED- HIRE A POST HOLE DIGGER
NOT RECOMMENDED- TWO PERSON OPERATION WHEN HIRING A POST HOLE DIGGER
RECOMMENDATION - BEST FOR LESS FENCING
Engine | |
|---|---|
| Engine Type | 9hp (7kW) OHV GX270 Honda (Genuine) |
General | |
| Assembled Length | 2500mm (98") |
| Assembled Width | 810mm (32") |
| Assembled Height | 1550mm (61") |
| Weight | 80 kg (176lbs) |
| Wheels | 4.80 x 4.00 x 8 Pneumatic |
| Auger Range | 100mm (4") - 350mm (14") |
| Auger Length | 900mm (35") (Extension Allows for Another 500mm (20") |
Hydraulics | |
| Speed | 0 - 60 RPM 200cc Danfoss Motor |
| Pump Capacity | Pump 4.0 cc Per Revolution |
| Working Preasure | 150 Bar (2200 PSI) |
| Connectors | Flat-faced, No Drip, Quick Connect Couplings |
| Filtration | 10 Micron Heavy Duty Inline Filtration With Replaceable Hydraulic Filter |
| Hydraulic Cap | Pressurized |
| Relief Valve | Pressure Relief Valve Is Incorporated In The Manifold |
Features | |
|---|---|
| Sandblasted & Powder Coated Finish | |
| Dual Rotation of Auger (Standard & Counter Rotating) | |
| Hydraulic Fluid Level Indicator In Tank | |
| Spring Loaded Height Adjustment (Allows Operator to Clear Auger & Extension from hole) | |
| Hydraulic Power / No Belts / Gears Or Shear Pins | |
| Safe, Simple, Single Person Operation | |
| Control Handle - Automatic Neutral Return | |
| Disassembles For Easy Transport | |
DHS Hydraulic Post Hole Digger In Action Watch How Easy This Unit Is To OperateBest for Less Fencing and the Red Roo Post Hole Digger DHS Hydraulic Post Hole DiggerWarranty | |
|---|---|
| 12 Months On Machine & 2 Years On Engine As Per Specification | |
| 90 Days In Commercial Applications / 90 Days In Hire & Rental | |
