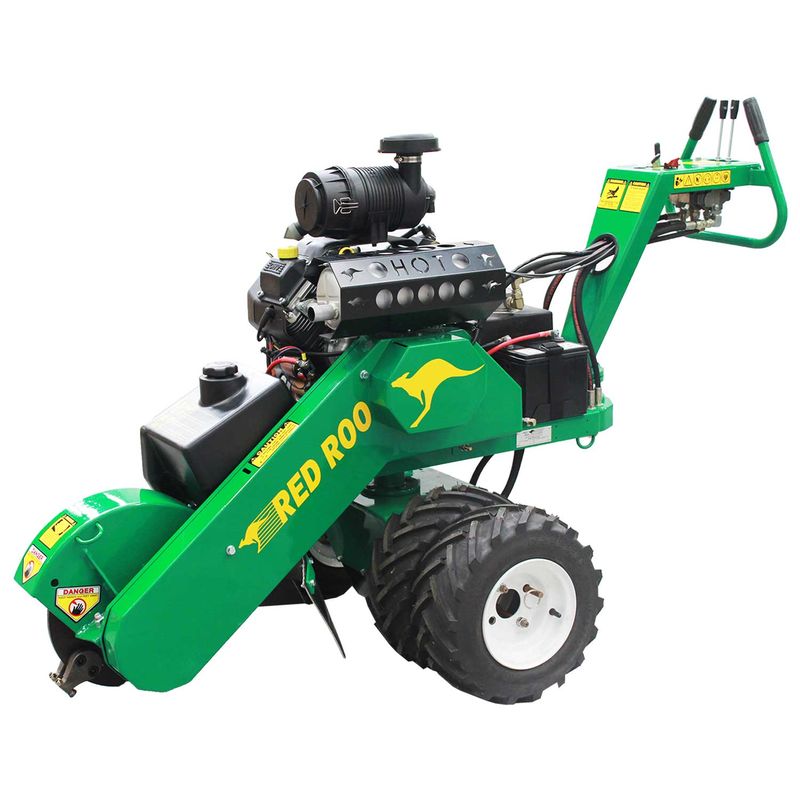

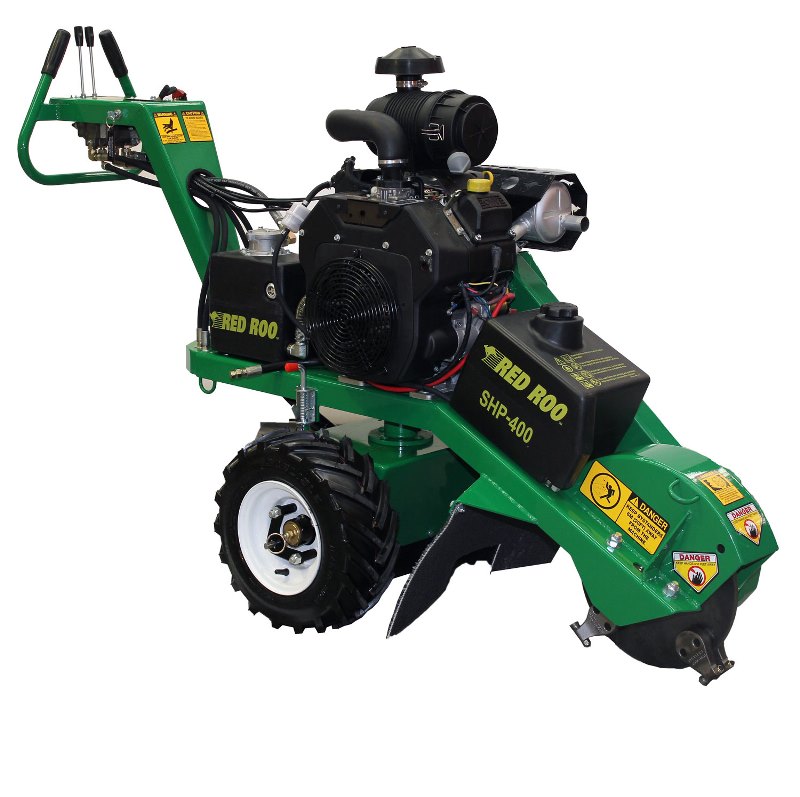

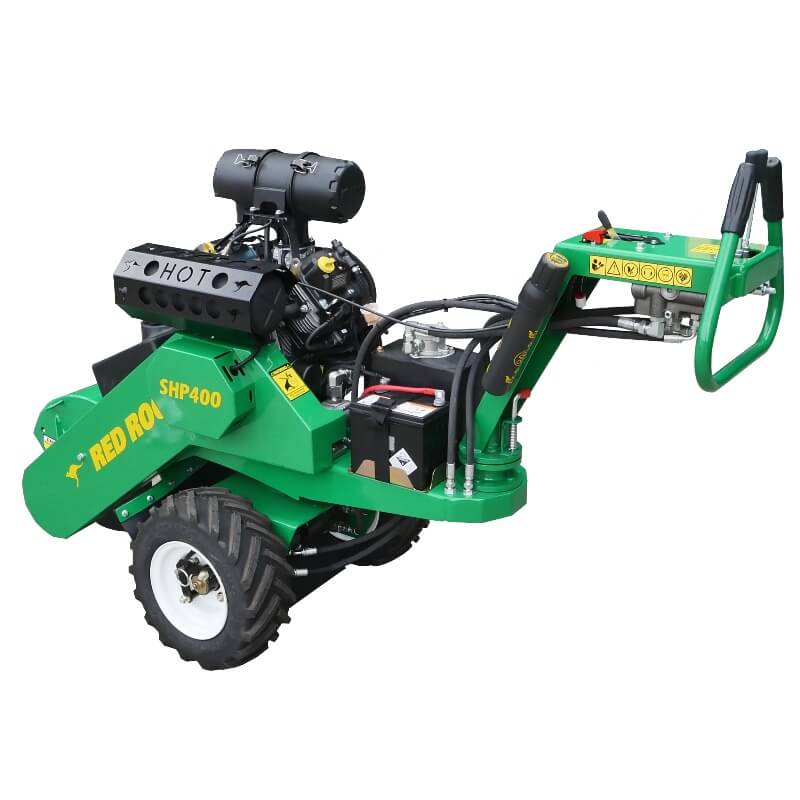

SHP400 Pivot Over Center Stump Grinder
The SHP400 is the best-selling self-propelled handheld stump grinder in AU & NZ.
Key Features
- Pivot over center
- Sand blasted & powder coated finish
- Kohler Command EFI
50+ Years of Innovation
Established in Toowoomba, Queensland in 1971. Machines are manufactured in Australia or United States.
Design & Manufacturing
Utilizing Laser Cutting, CNC Machining, and Powder Coating, we use the latest technology available to manufacture at the highest possible standard.
Service & Support
Next day parts service and expert online and phone support across Australia and New Zealand.
The Red Roo SHP400 stump grinder's industry-leading design pivots over the center line of the wheels, allowing the grinding head to grind across the root system and stump while the wheelbase remains stationary.

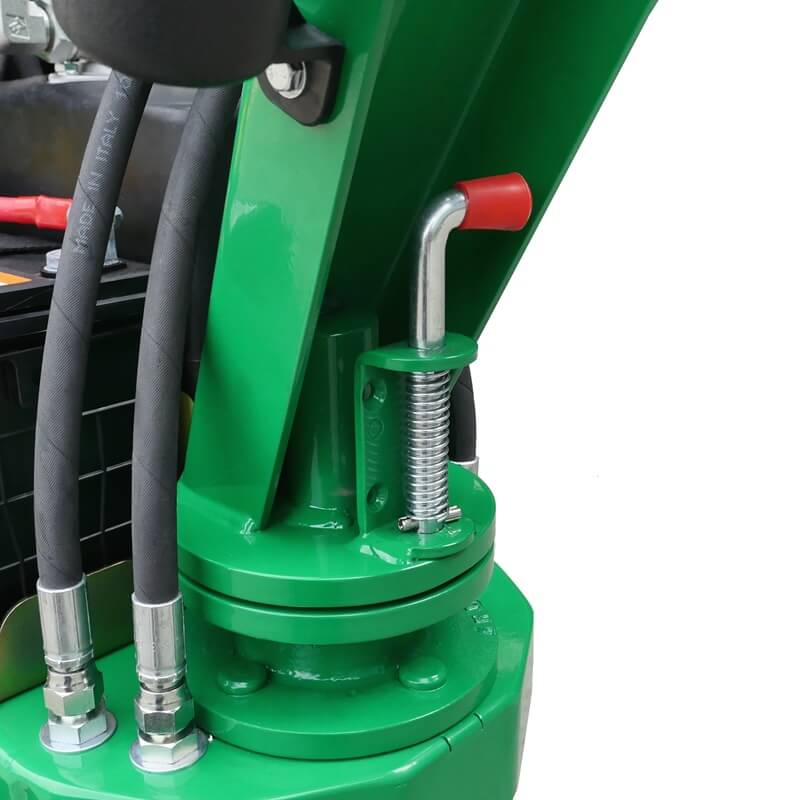

The SHP400 is self-propelled and features independent wheel drive with free-wheeling hubs. Operator controls may be set to either side to allow increased visibility.
Just 740 mm (29") wide, this unit is ideal in tight access or difficult access situations.
Powered by a 25 HP (20 KW) (continuous rating) Kohler Command EFI engine, this handheld stump grinder is the market leader in both its design and performance.
The SHP400 is the best-selling self-propelled handheld stump grinder in Australia and New Zealand.
Kohler Command Pro EFI Engine
The Kohler Command Pro EFI Engine has no choke and starts like your car. Just turn the key and go. Also it has no carburettor which means less downtime. Advanced sensor technology allows the engine to optimise performance by adapting to operating conditions and the EFI Diagnostic Software provides instant data on engine performance.
SHP400 Handlebar Stumpgrinder Industry Leader
The features of the Red Roo SHP400 can be best explained and illustrated by this video which provides a three dimensional, rotational view of the benefits associated with this remarkable stumpgrinding machine. Powered by a 25hp(kw) EFI Kohler Command V Twin Engine, this tight access handlebar machine is only 740mm(29") wide. This handlebar tight access machine is an industry market leader.
Narrow Tight Difficult Access
This video demonstrates the versatility of the SHP400 in accessing narrow areas where other stump grinders have difficulty because they are too wide. The tires on this unit were changed in-order to allow this unit to pass through a door that was only 720mm (28)" in width.
Limited Access Stump Removal 740MM (29) WIDE
Red Roo SHP400 is ideal for narrow or difficult access stump removal. This unit has a pivot over centre operation that allows greater operational efficiency over the machine compared to a traditional fixed handlebar stump grinder. Manufactured for nearly twenty years in Melbourne Australia this unit has been a used by hundreds of certified arborist across Australia and New Zealand.
Pivot Over Center COMPETITIVE DEMONSTRATION
This demonstrates the performance of the Red Roo SHP400 against our only in class competitor. Our objective is to demonstrate our design, and the attention to detail that Red Roo has engineered into this product. The SHP400 has proven itself over nearly twenty years to be a best in class performer in difficult, or tight access situations.
Opposition Stump Grinder Difficult to Move

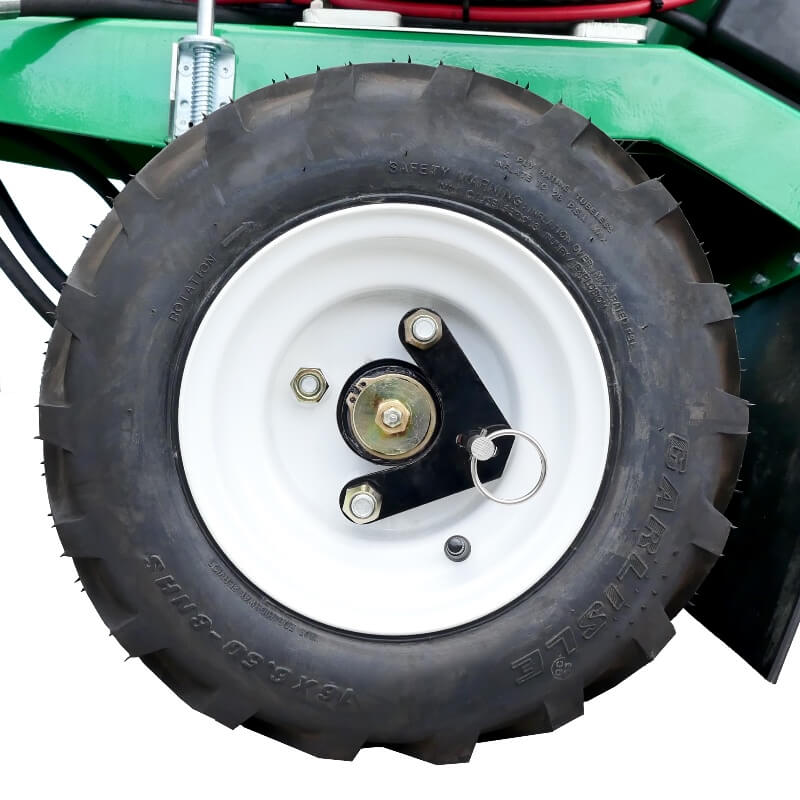

This video demonstrates just how difficult a hand held stumpgrinder can be to move if the engine does not crank. Red Roo machines in this class come standard with free wheeling hubs, that allow the operator to push the machine in the event the engine will not run.
Engine | |
|---|---|
| Make & Model | Command Pro EFI ECH749 |
| Max. Horsepower | 26.5hp(20kw) @ 3,600 rpm |
| Fuel Type | Unleaded |
| Starting | Electric Key Start |
| Lubrication | Full pressure w/full-flow filter |
General | |
| Length | 2000mm (Handle in operating position) |
| Width Length | 1490mm (Handle in stored position) |
| Width | 740mm (29") (Handle in operating position) |
| Width | 950mm (Handle in stored position) |
| Height including air filter | 1100mm |
| Weight | 240kg |

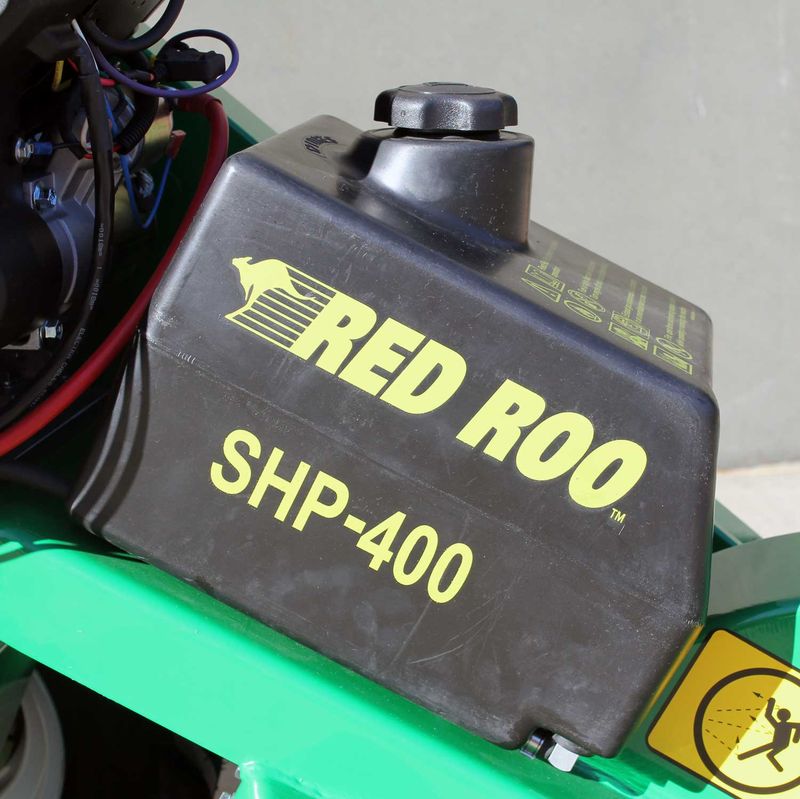

| Fuel tank capacity | 13.3 litres |
| Hydraulic oil capacity | 6.4 litres |

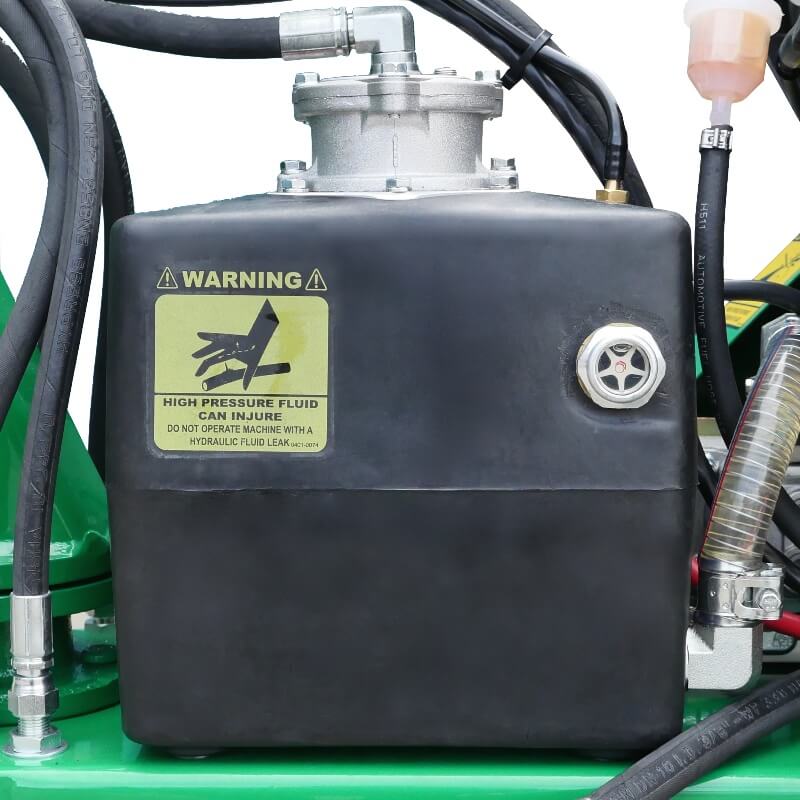

Hydraulics | |
| Pump flow | 3.15cc gear pump |
| System pressure | 2000 psi |
| Tank capacity | 6.4 litres |
Cutter Wheel | |
| Wheel diameter | 350mm, 420 with teeth |
| Wheel thickness | 12mm |
| Wheel RPM | 2200rpm |
| Number of teeth | 8 |
Cutting Range | |
| Above ground | 600mm (24") |
| Below ground | 450mm (18") |
| Width | 960mm (38") |
Features | |
|---|---|
| Pivot over center | |
| Sand blasted & powder coated finish | |
| Kohler Command EFI | |
| Electric key start | |
| 8 rotational Red Teeth | |
| Independent hydrulic wheel drive | |
SHP400 Red Roo Pivot Over Center in a tight access situation
SHP400 Handlebar Swivel Head Stumpgrinder
SHP400 Swivel Head Stumpgrinder
SHP400 Stump Grinder Ft. Roberts Tree Service
Veteran Arborist Demonstrates SHP400 Pivot Over Center Stumpgrinder Ideal For Tight Access Areas
SHP400 Stumpgrinder Pivot Over Centre.
SHP400 Duel Wheels
Difficult access stump grinding tight access stump grinding SHP400 Pivot Over centre Stump GrinderWarranty | |
|---|---|
| 12 Months on Machine & 2 Years on Engine as per manufactures specification | |
| 90 Days in commercial applications / 90 Days in hire and rental | |
